Mud Pulse Surface System
The Enteq surface system is based around the xxMWD/PC program suite. This PC based solution offers a unique, feature rich range of programs and utilities to cover every MWD option. Advanced options such as Dynamic Sequencing save operating time and optimize data throughput.
Each surface unit contains the Enteq MPRx card which utilizes XXT’s best-in-class decoding algorithms to receive and decode the telemetry pulses received from the standpipe’s pressure transmitter. Robust hardware, filtering and embedded firmware is used to remove mud pump and other undesirable noise, allowing the XXT downhole sensors to transmit data at maximum bit rates.
There is a choice of ruggedized surface units both fully rated to Class 1 Div 2 specification:
- Laversab 4152 unit
- Acura Roughneck 15 Rugged Panel PC unit
Advantages
- Complete collection of all the programs you need in one system
- Powerful feature set for optimized tool operation
- Advanced capabilities like Dynamic Sequences to save operating time
- A highly comprehensive set of configuration parameters ensures optimized performance
- Use real-time shock and vibration display to avoid costly downtime, protect your tools from damage and optimize penetration rates
- Ability to lock and unlock menus and parameters ensures inexperienced users do not compromise operational success by accident whilst retaining the incredibly powerful system interface for experienced engineers
- Customisable screens which allow the display of user’s own logo and branding
Features
- Driller’s Remote Terminal (DRT) and Safe Area PC (SAPC) Configuration Utility for MPTx (DIM) and MPRx
- xxToolTest – Bench test your tool and actuate your pulser on surface and optimize telemetry data throughput
- xxRollTest – Measure accelerometer and magnetometer data and generate a Roll Test report
- xxMemIO – Format and dump recorder log files and tool statistics
- xxMWDWaveformAnalyzer – Capture and view MPT waveforms in real-time or display previously captured log files
- vmIndicator – A stand-alone real-time graphical Shock and Vibration display
- vmAnalyzer – A graphical display of shock and vibration data captured downhole
Specifications

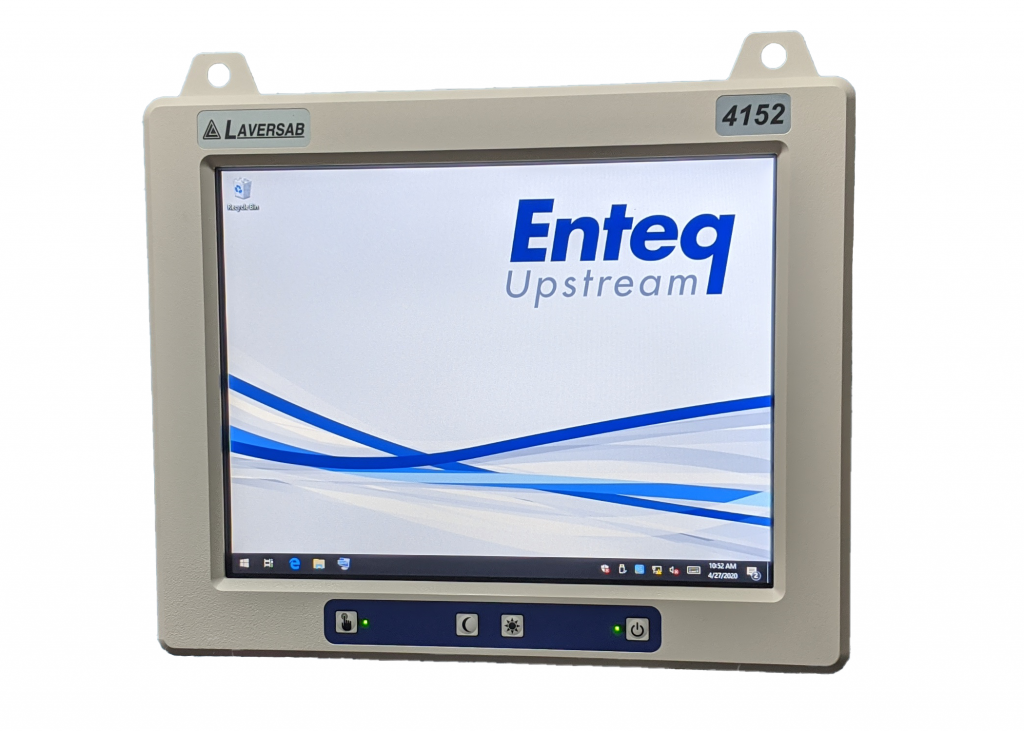

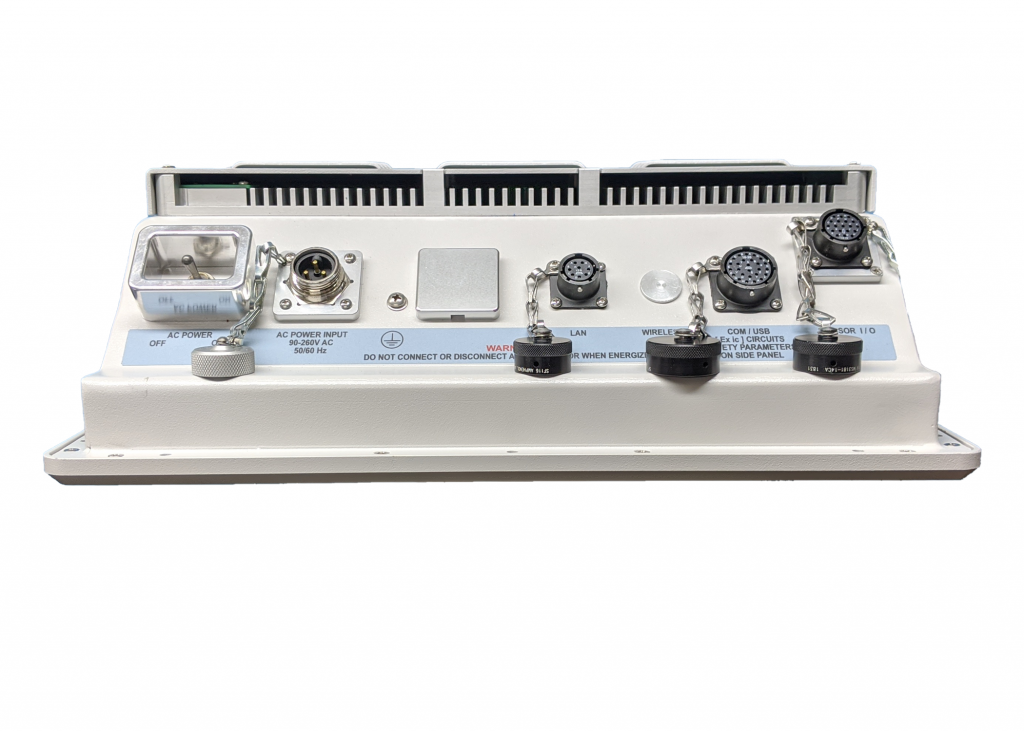

Laversab 4152
| Operating Power | 90-260 VAC, 47-63 Hz, 250 VA |
| Operating Temperature | -40°C to 50°C |
| Storage Temperature | -40°C to 75°C |
| Operating / Non-operating shock | 3G RMS, 5 to 500 Hz |
| Humidity | 5% to 100% |
| Sealing | NEMA-4 on all six sides |
| Weight | 18 lbs Dimensions: 16.2” (w) x 14.8” (h) x 4.45” (d) |
| Certification | UL 1604 / CSA C22.2 No. 213, Class 1 Div 2 location Groups A, B, C, & D; Temp. code T6 at 50°C ambient |

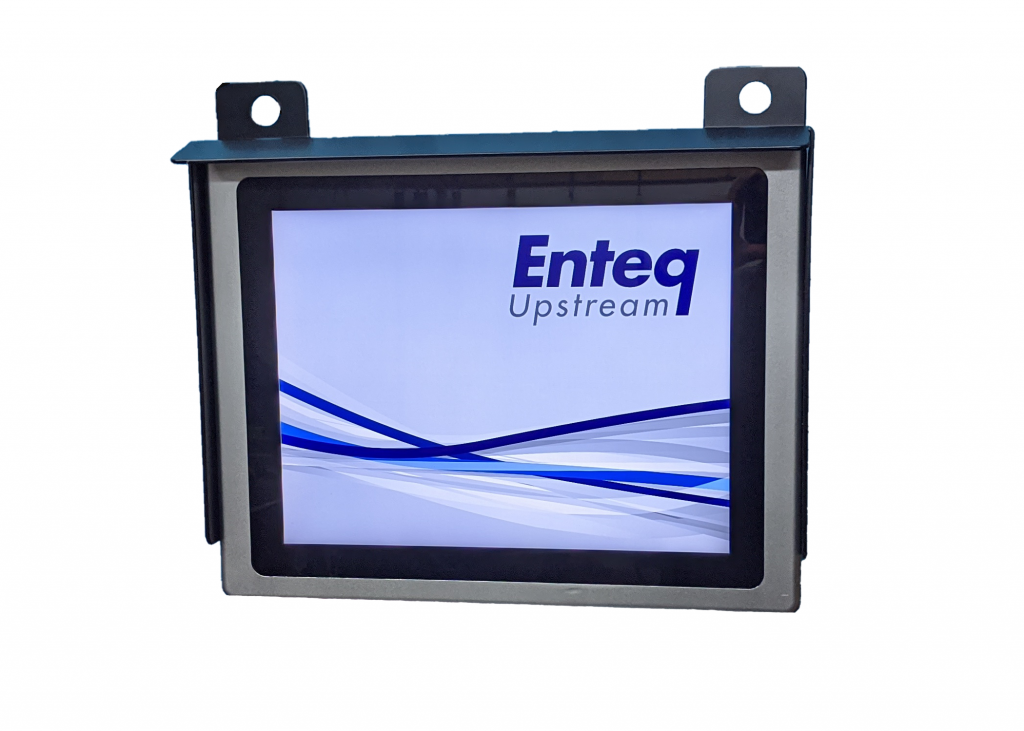

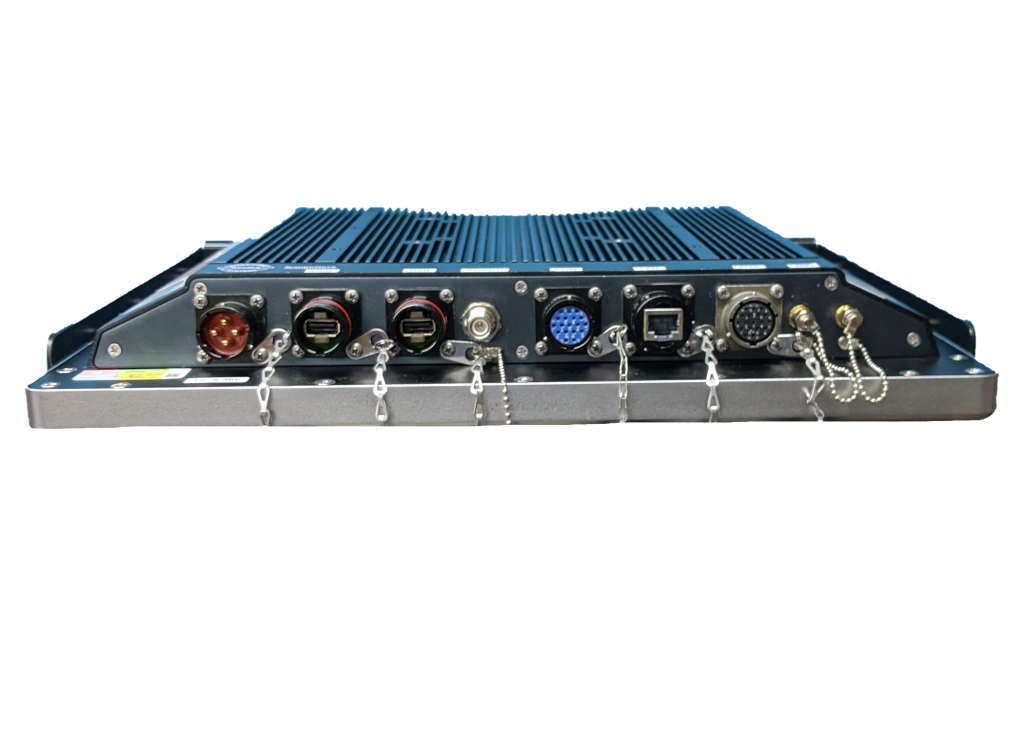

Acura Rugged Panel PC
| System | |
|---|---|
| Size / Type | 15” TFT Active Matrix LED |
| Processor | Intel 6th Gen i5 CPU |
| Brightness | 1000 NITS – High Bright |
| Memory | 1 x DDR4 – Max 16 GB |
| Backlight | LED Backlight Unit |
| Touch Screen | Multi-Point Capacitive |
| Power Supply | Optional UPS |
| I/O | |
|---|---|
| Serial Port | 1 X RS232 or RS485 |
| LAN | 1 X RJ45 port GbE (Modifiable) |
| USB | 2 X USB (Modifiable) |
| WiFi | 802.11 a/b/g/n |
| Wireless | 900MHz Radio (Inclusive 4G/LTE option) |
| Mechanical | |
|---|---|
| Mounting | Support Both of Panel-Mount /VESA – Mount 100 X 100 mm |
| Weight | 5.5 Kg – 12.1 Lbs |
| Dimensions | 39.6x 31x 4.9 cm -15.6”x 12.2”x 1.9” |
| Construction | Aluminium Anodized Alloy and Frame |
| Environmental | |
|---|---|
| Operating Temp | -40ºC – 60ºC (-40ºF ~ 140ºF) |
| Storage Temp | -40ºC – 70ºC (-40ºF ~ 158ºF) |
| Relative Humidity | <96% (Non-Condensing) |
| NEMA Rating | NEMA4, IP65, Corrosion Resistant Fully Sealed Chassis |
