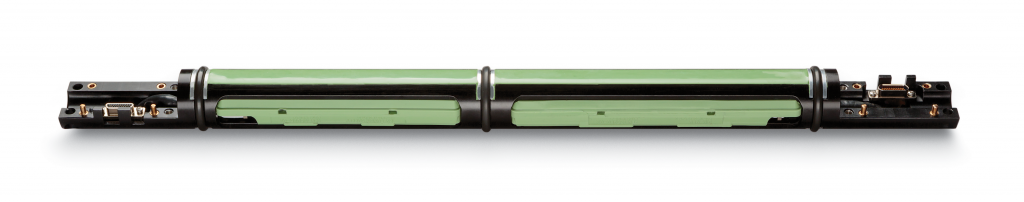

Directional Interface Module
The XXT DIM provides a flexible, intelligent solution for the acquisition, formatting and telemetry of downhole data to surface. It is a drop-in downhole Directional Interface Module providing Mud Pulse Telemetry compatible with industry standard Tensor systems.
Advantages
- Rugged and Field Proven. Over 2,000 DIMs operating across the industry
- Proven reliability at 175 ̊C and during high shock and vibration
- Intelligent power management delivers industry-leading battery life
- High-speed battery switching eliminates system failure in the event of a primary battery fault
- Auto-resetting over-voltage protection
- Compatibility with industry standard telemetry and directional modules allows easy integration across fleet
- Broad compatibility with industry leading orientation modules and other downhole sensors
Features
- Rotation Detection + Dynamic Sequencing optimizes telemetry for maximum data transmission
- Supports transmission of discrete compensated sensor data (appropriate for ISCWSA error model correction)
- Compatible with single-wire gamma systems Downhole survey and gamma recording capability
- Modular configuration to allow user to easily perform board replacement
Specifications
| Length | 20 inches |
| Diameter | 1.36 inches (excluding O-ring) |
| Power Consumption | Approx. 7mA @28Vdc |
| Temp Rating | 175°C |
| Detectional Sensor Power Control | Smart, normal, disabled |
| Steering Sequences | 6 |
| Preconfigured Operating Modes | 4 |
| Operating Voltage | 17.5 – 36 Vdc |
| Tool Bus | XXT and GE/Tensor Compatible 10-wire |
| Survey Log | 3,264 Survey records |
| Gamma Log | Up to 53,144 readings |
| Dynamic Sequences | 3 |
| Survey Sequences | 4 |
