At-Bit Gamma – PayzoneTracker

The PayzoneTracker is the latest generation of at-bit tool system designed and developed for placement of long laterals in shales or thinly bedded payzones.

The PayzoneTracker* brings sensors as close as 12 to 16in from the bit, allowing well trajectory adjustments to be made immediately, a significant improvement on standard MWD and/or LWD tools that usually are tens of feet behind the bit.

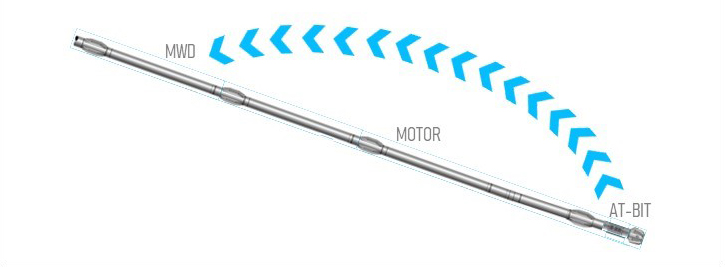

The new system can work in various types of mud, including OBM. With an At-Bit sub length of 35in (89cm), the PayzoneTracker* best preserves the bit steerability compared to any other at-bit tool on the market. The EM short-hop receiver can be spaced apart from the at-bit sub by 60ft (18m) or more enabling data transmission across the motor.

The PayzoneTracker* offers extended operation times of up to 200hrs in typical runs. Measurements include continuous inclination, in both sliding and rotating modes and 16-sector gamma readings. The EM short-hop receiver has been paired with the popular MWD systems on the markets.

Four quadrant gamma measurements and several other parameters are available real-time for transmission to surface via mud pulse or EMWD.

The PayzoneTracker* tool is available in both 4.75” and 6.75” sizes.

The nominal temperature and pressure ratings are 150°C and 20,000psi. Higher temperature and pressure ratings of 175°C and 25,000psi are also available.

Advantages

  • Long lateral drilling in shales
  • Thinly bedded payzones
  • Immediate casing-point detection (reduction of drilling rat-hole)

Features

  • Continuous INC while sliding or rotating
  • 4-quadrant Gammas for realtime transmission
  • 16-sector Gammas for memory
  • Bit RPM measurement
  • Measure point 12-16in to bit
  • At-bit sub length 35in.
  • Rated at 150°C/20000psi (175°C/25000psi option)

Specifications

At-bit Sub

Tool Size4.75 in.6.75 in.
Length35 in.35 in.
Nominal OD5.0 in.6.75 in.
Max OD5.25 in.7.0 in.
Max ID1.313 in.2.375 in.
Connection PIN Up / BOX Down3-1/2 REG (IF option) / 3-1/2 REG4-1/2 REG (IF option) / 4-1/2 REG
Yield Strength15,140 lbf-ft29,900 lbf-ft
Make-up Torque12,000 lbf-ft24,000 lbf-ft
Max DLS Rotating15°/100ft8°/100ft
Max DLS Sliding30°/100ft16°/100ft
Max Downhole Drilling Torque12,000 lbf-ft24,000 lbf-ft
Max RPM (Downhole)250 RPM250 RPM
Max Flow Rate340 gpm750 gpm
Max Operating Pressure20,000 psi20,000 psi
Max Operating Temperature150°C (175°C option)150°C (175°C option)
Max Operating WOB25,000 lbs50,000 lbs
Max Sand Content1%1%
Max Number of Recuts44

Receiver Sub

Tool Size4.75 in.6.75 in.
Collar Gap Length35 in.35 in.
Collar Gap Max OD4.75 in.6.75 in.
Collar Gap Connection3-1/2 IF4-1/2 IF
Collar Gap Yield Strength18,000 lbf-ft34,000 lbf-ft
Collar Gap Make Up Torque12,000 lbf-ft24,000 lbf-ft
Receiver Electronics Housing OD1.875 in.1.875 in.

Measurement

Inclination @ Bit
Range0 – 180 degrees
Repeatability±0.2 degrees while sliding or ±0.5 degrees while rotating
Measure Point to Bit12 in
Azimuthal Gamma @ Bit
Range0 – 1,023 AAPI
Accuracy2%
Number of Sectors16
Measure Point to Bit16 in.

Battery Life

Nominal Operation Time (Azimuthal Gamma only)Up to 200 Hours

Recommended Operating Parameters

RPMMax 200 for minimum fatigue
Formation Resistivity2 -200 ohmm for optimal short-hopping
Mud Resistivity1 ohmm or higher
VibrationMax 20 Grms, 50-1,000Hz
ShockMax 500 G, 0.5ms (z-axis), 1,000 G, 0.5ms (x- or y-axis)

Running Below a Mud Motor¹²

Tool Size4.75 in.6.75 in.
Max Bend Setting1.50º1.50º
Max DLS Rotating15º/100ft8º/100ft
Max Surface RPM6060
Max Mud Motor RPM180180

¹ Do not run any motor stabilization with Inc @ Bit sub
² WOB capacity of most mud motors is higher than Inc @ Bit sub
